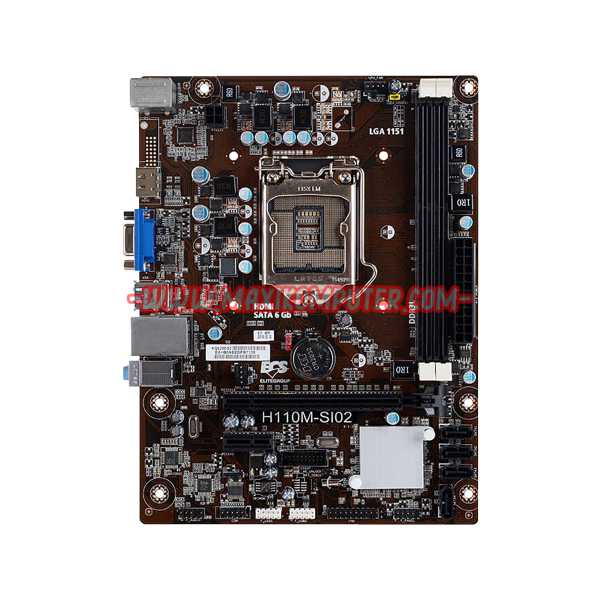

Motherboard ECS H110-S102 LGA1151 DDR3L 1600 Up to 32GB

CPU
Supports 7th gen Intel® Core™ family/ Pentium / Celeron series processors for LGA 1151 socket
Supports 6th gen Intel® Core™ family/ Pentium / Celeron series processors for LGA 1151 socket
Solid Capacitor for CPU side
Please refer to CPU support list for details
CHIPSET
Intel® H110 Express Chipset
GRAPHICS
Supports DirectX® 12
MEMORY
Dual-channel DDR3L Memory architecture
Supports DDR3L 1600 non-ECC, Un-buffered SDRAM Memory
2 X 240-pin DDR3L DIMM socket
Support up to 32 GB*
Note:Please refer to the latest Memory support list for details
EXPANSION SLOT
1 X PCI Express X16 Gen 3.0 slot(s)
1 X PCI Express X 1 Gen 2.0 slot(s)
STORAGE
Support by H110 Express Chipset
4 X Serial ATAIII 6Gb/s
AUDIO
6-Channel HD audio CODEC
Realtek ALC662 6-channel High Definition audio CODEC
LAN
Realtek 8111H Gigabit Fast Ethernet Controller
Wake-On-LAN
USB
Support by H110 Express Chipset
4 X USB3.1 Gen1 port(s) up to 5Gb/s
Back Panel 2 port(s)
6 X USB2.0 port(s) Up to 480 Mb/s
Back Panel 2 port(s)
REAR PANEL I/O
1 X PS/2 Keyboard & PS/2 mouse connectors
1 X Audio port (Line Out/Line In/Mic In)
1 X RJ-45 port
1 X HDMI port(s)
1 X D-Sub (VGA) port(s)
2 X USB3.1 Gen1 port(s)
2 X USB2.0 port(s)
CONNECTORS & HEADERS
1 X 24-pin ATX Power Supply connector
1 X 4-pin 12V Power connector
1 X 4-pin CPU_FAN connector
1 X 4-pin SYS_FAN connector
1 X Front panel audio header
1 X USB 3.1 Gen1 header
Support additional 2 USB ports
2 X USB 2.0 header
Support additional 4 USB ports
4 X SATA III 6Gb/s connector(s)
1 X CLR_CMOS header
1 X Serial port header (COM)
1 X TPM header
1 X IDEA Memory jumper
