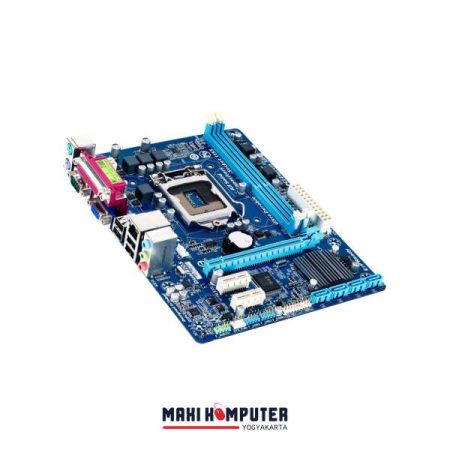

Gigabyte GA-H61M-DS2 DDR3 2200Mhz Socket LGA1155 Intel Motherboard

Deskripsi

Gigabyte GA-H61M-DS2 DDR3 2200Mhz Socket LGA1155 Intel Motherboard

All new design of Ultra Durable 4 classic
Supports 3rd Gen. Intel® 22nm CPUs and 2nd Gen. Intel® Core™ CPUs (LGA1155 socket)
Unique On/Off Charge delivers the best recharging capability to iPad, iPhone and iPod Touch
Supports 3rd generation PCI-Express interface
Industry’s Leading All Solid Capacitor Design
Enhanced Intel HD Graphics 2000/3000 integrated with the processor
Innovative Smart 6 technology for smarter PC management
Dual UEFI BIOS protection with 3TB+ HDD boot up capability

CPU
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
L3 cache varies with CPU

Chipset
Intel® H61 Express Chipset

Memory
2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
Dual channel memory architecture
Support for DDR3 2200(OC)/1333/1066/800 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support XMP memory, you must install an Intel 22nm (Ivy Bridge) CPU.

Audio
Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel

LAN
Realtek GbE LAN chip (10/100/1000 Mbit)

Expansion Slots
1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots

Storage Interface
Chipset:
4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

USB
Chipset:

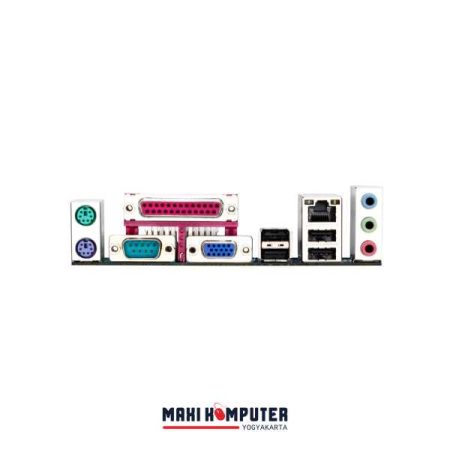

Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper
